How To Set Up BlueMap on Your Minecraft Server

Important!

This guide is based on ‘Paper’ servers, so your server must be running on this server type.

To switch your loader, go to Manage Server and select the ‘Switch Loader’ tab on the left, then choose one of the above supported types.

Note:

In this article, we’ll explain how to set up ‘BlueMap’, which is a plugin that reads your Minecraft world files and generates not only a map, but also 3D-models of the whole surface.

1. Download BlueMap

This plugin is a single .jar file that has global compatibility from version 1.20 to 1.21.

---

2. Install BlueMap on Your Server

If you don’t know how to install plugins on your server, you can view our How to Upload Minecraft Plugins (Paper) article.

---

3. Log In to Your Panel

---

4. Select the ‘Ports’ Tab

---

5. Select the ‘Add Port’ Button

---

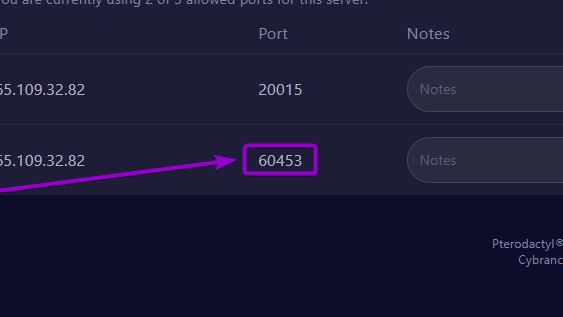

5.1. Copy the New Port

---

6. Select the ‘Files’ Tab

---

7. Locate the ‘BlueMap’ Folder

You can find the folder in /home/container/plugins/bluemap.

Make sure you have restarted your server after installing the plugin so that this folder can be generated.

---

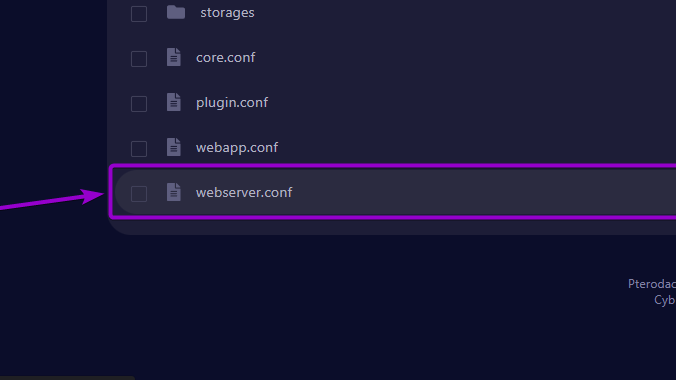

8. Select the ‘webserver.conf’ File

---

8.1. Replace the Port Value

Enter the port you copied in step 5.1 on the ‘port’ line.

Then, save the changes and close the file.

---

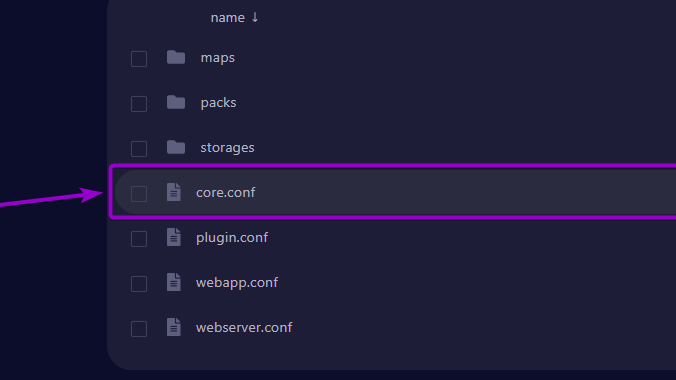

9. Select the ‘core.conf’ File

---

9.1. Set ‘accept-downloads’ to true

Then, save the changes.

---

10. Restart Your Server

---

11. Open BlueMaps in Your Browser

After restarting your server, paste in your browser’s search bar your server’s IP + the Port you copied in step 5.1.

Then, press the Enter key:

You will be able to see your server’s Minecraft world in 3D in your browser:
